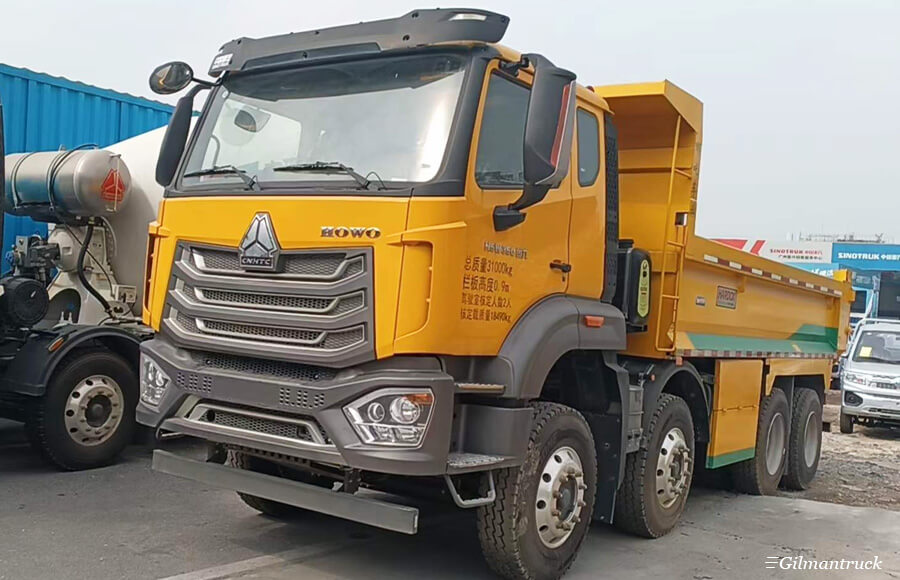

Howo NX N5W 8x4 dump truck 340hp 5.6m ZZ3317V286JF1B
| Condition | New |
|---|---|
| Brand | HOWO |
| Drive type | 8x4 |
| Fuel type | Diesel |
| Horsepower | 350 HP |
| Emission standard | Euro 6 |
| Engine brand | Weichai |
| Engine capacity | 7.8 L |
| Transmission | Manual |
| Mileage | 100 km |
Howo NX N5W 8x4 dump truck 340hp 5.6m ZZ3317V286JF1B Specifications & Features
Basic Info
| Model | ZZ3317V286JF1B | Brand | Howo |
|---|---|---|---|
| Drive model | 8x4 | Wheel base | 1800+2800+1350mm |
| Engine model | Weichai WP8.350E61 | Gearbox | Sinotruk HW19712L |
| Rear axle ratio | 5.143 | Dimension (LxWxH) | 8980x2550x3000mm |
| Wheel track | 1930/1930mm+1800/1800mm | Tare weight | 12380kg |
| Payload | 18490kg | Condition | Brand new |
Product Parameters
| Engines | Engine model | Weichai WP8.350E61 |
|---|---|---|
| No. of cylinders | 6 | |
| Fuel type | Diesel | |
| Engine capacity | 7.8L | |
| Emission standard | Euro 6 | |
| Max horsepower | 350hp | |
| Max power | 257kW | |
| Maximum torque | 2060N·m | |
| Gearboxes | Gearbox model | Sinotruk HW19712L |
| Gear shifting method | Manual | |
| Forward gears | 12 | |
| Reverse gears | 2 | |
| Chassis | Front axle | VGD75 |
| Front axle allowable load | 6500/6500kg | |
| Rear axle | 440B highway version with self-adjusting arms and dual rear axles | |
| Rear axle allowable load | 18000kg x2 | |
| Rear axle ratio | 5.143 | |
| Cargo box | Cargo box Dimension (LxWxH) | 8000x2350x1500mm |
| Thickness of the bottom/side panel | 5/3mm | |
| Tire | Tire numbers | 12 |
| Tire size | 12R22.5 | |
| Fuel tank capacity | 300L | |
Frequently Asked Questions
Thank you for your interest in used trucks from China. You can contact us via email or WhatsApp, please feel free to submit your inquiry in the form above, and we will respond to you as soon as possible.
1. Will there be a quality inspection conducted on the vehicle before shipping?
We will provide customers with high-definition videos before shipment, and complete all quality inspections of the vehicle before delivery. Additionally, we will provide you with a factory inspection certificate and relevant inspection and testing certificates upon delivery.
2. Does the price you quoted including shiping?
It is up to the terms of payment you prefer. Both CIP & CIF include the shipment fee.
3. Will you purchase commercial insurance for vehicles during shipping?
Yes, whether within China or abroad, we will purchase insurance for vehicles during shipping.
4. What information is included in the contract?
Once you confirm the vehicle and price, we can proceed to sign the contract. We will prepare an international trade contract and a proforma invoice (PI) for you.
The contract will include product information, payment methods, receiving bank details, delivery time and so on.
As per the agreement in the contract, you will be required to pay a deposit within the specified timeframe.
5. What are your payment terms?
T/T, L/C. We prefer T/T 30% as the deposit, and USD and EUR are acceptable.
Before the goods are officially shipped from China Customs, we need you to pay the remaining 70% of the payment.
6. How long can I get my order finished?
Typically around 30 days, but specifics may vary according to the contract.
7. Can I replace the tires with brand new ones?
Of course, if you agree to pay, we can replace the tires with brand new ones.
