Howo 8x4 dump truck 12 wheels 40ton with Euro 2 ZZ3317V3567B1R
| Condition | New |
|---|---|
| Brand | HOWO |
| Drive type | 8x4 |
| Fuel type | Diesel |
| Horsepower | 400 HP |
| Emission standard | Euro 2 |
| Engine brand | Weichai |
| Engine capacity | 12 L |
| Transmission | Manual |
Howo 8x4 dump truck 12 wheels 40ton with Euro 2 ZZ3317V3567B1R Specifications & Features
Basic Info
| Model | ZZ3317V3567B1R | Brand | Howo |
|---|---|---|---|
| Drive model | 8x4 | Wheel base | 1800+3525+1350mm |
| Engine model | Weichai WP12.400E201 | Gearbox | Sinotruk HW19710 |
| Rear axle ratio | 4.77 | Dimension (LxWxH) | 10500x2550x3600mm |
| Wheel track | 2022/2022mm+1860/1860mm | Tare weight | 14500kg |
| Payload | 18750kg | Condition | Brand new |
Product Parameters
| Engines | Engine model | Weichai WP12.400E201 |
|---|---|---|
| No. of cylinders | 6 | |
| Fuel type | Diesel | |
| Engine capacity | 11.596L | |
| Emission standard | Euro 2 | |
| Max horsepower | 400hp | |
| Max power | 294kW | |
| Maximum torque | 2100N·m | |
| Gearboxes | Gearbox model | Sinotruk HW19710 |
| Gear shifting method | Manual | |
| Forward gears | 12 | |
| Reverse gears | 2 | |
| Chassis | Front axle | VGD95 double front axle |
| Rear axle | MCP16ZG double rear axle | |
| Rear axle ratio | 4.77 | |
| Cabin | Model | SINOTRUK HW76 Lengthen cab |

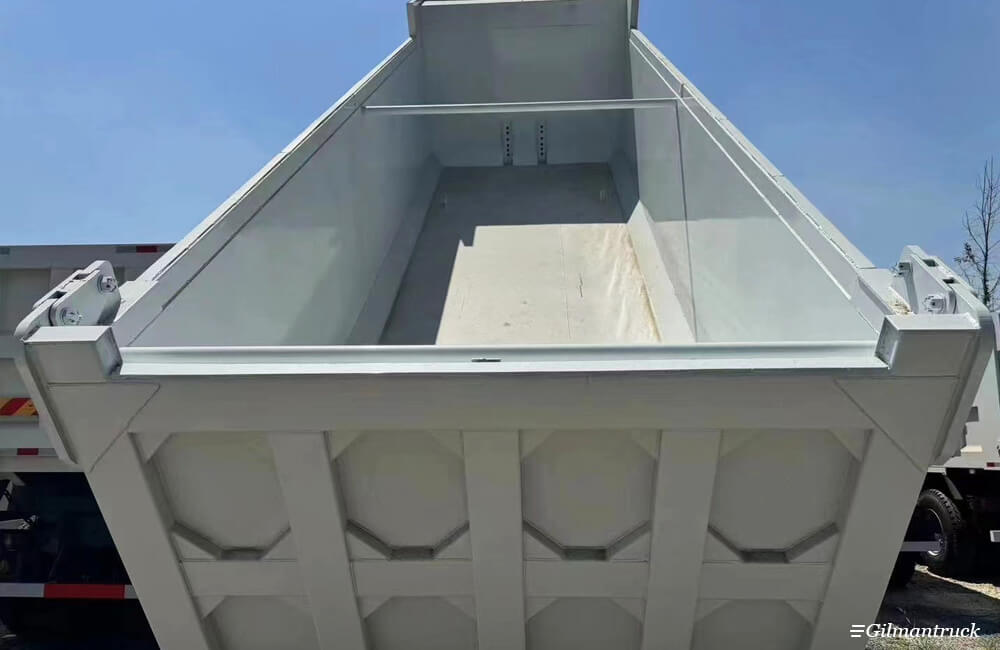

| Cargo box | Cargo box Dimension (LxWxH) | 7300x2300x1500mm |
| Cargo box Volume | 25 cubic meters | |
| Thickness of the bottom/side panel | 12/8mm, T700 High-Strength Steel Plate | |
| Tire | Tire numbers | 13(Including 1 spare tire) |

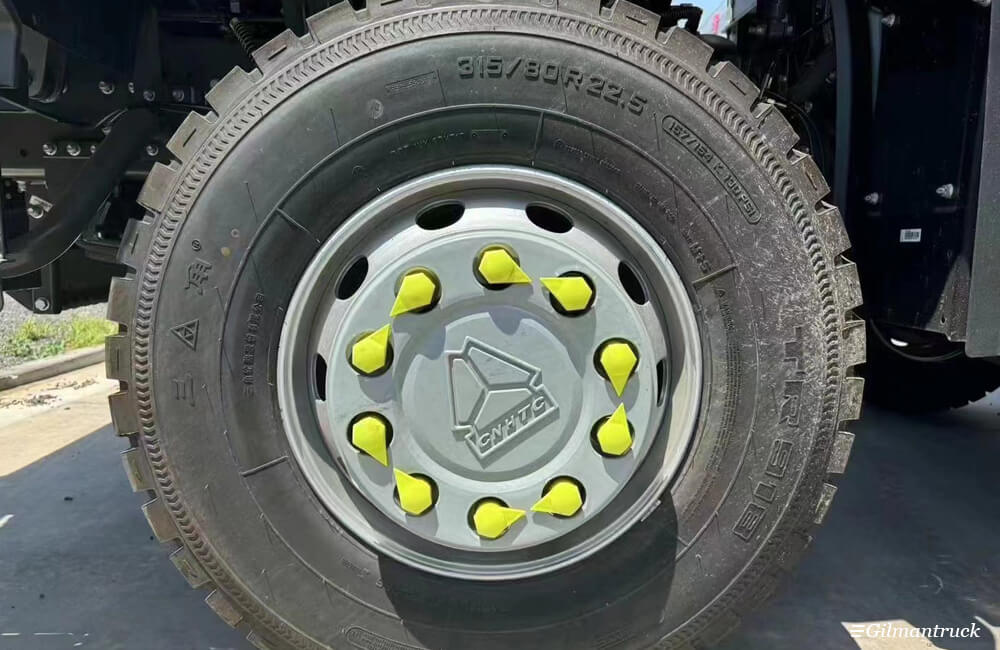

| Tire size | 315/80R22.5 |
Frequently Asked Questions
Thank you for your interest in used trucks from China. You can contact us via email or WhatsApp, please feel free to submit your inquiry in the form above, and we will respond to you as soon as possible.
1. Will there be a quality inspection conducted on the vehicle before shipping?
We will provide customers with high-definition videos before shipment, and complete all quality inspections of the vehicle before delivery. Additionally, we will provide you with a factory inspection certificate and relevant inspection and testing certificates upon delivery.
2. Does the price you quoted including shiping?
It is up to the terms of payment you prefer. Both CIP & CIF include the shipment fee.
3. Will you purchase commercial insurance for vehicles during shipping?
Yes, whether within China or abroad, we will purchase insurance for vehicles during shipping.
4. What information is included in the contract?
Once you confirm the vehicle and price, we can proceed to sign the contract. We will prepare an international trade contract and a proforma invoice (PI) for you.
The contract will include product information, payment methods, receiving bank details, delivery time and so on.
As per the agreement in the contract, you will be required to pay a deposit within the specified timeframe.
5. What are your payment terms?
T/T, L/C. We prefer T/T 30% as the deposit, and USD and EUR are acceptable.
Before the goods are officially shipped from China Customs, we need you to pay the remaining 70% of the payment.
6. How long can I get my order finished?
Typically around 30 days, but specifics may vary according to the contract.
7. Can I replace the tires with brand new ones?
Of course, if you agree to pay, we can replace the tires with brand new ones.
