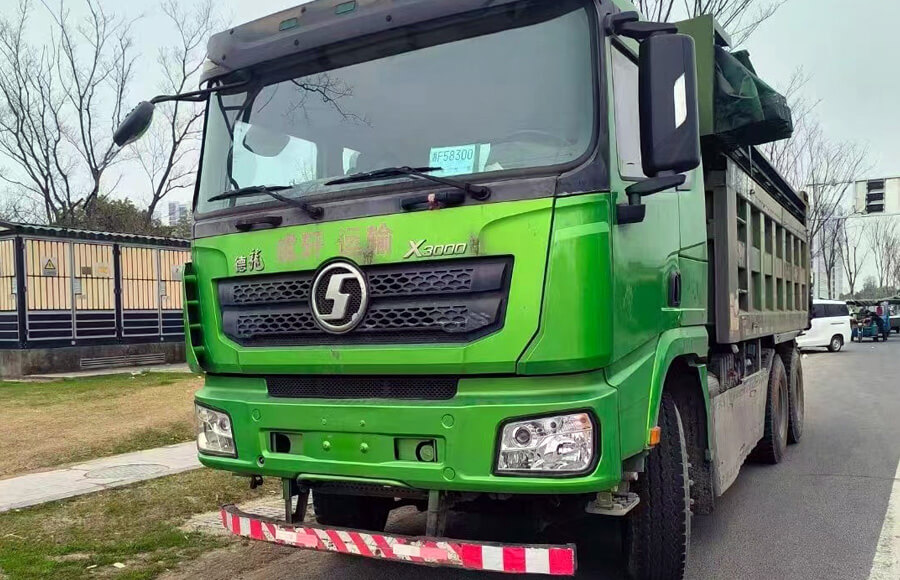

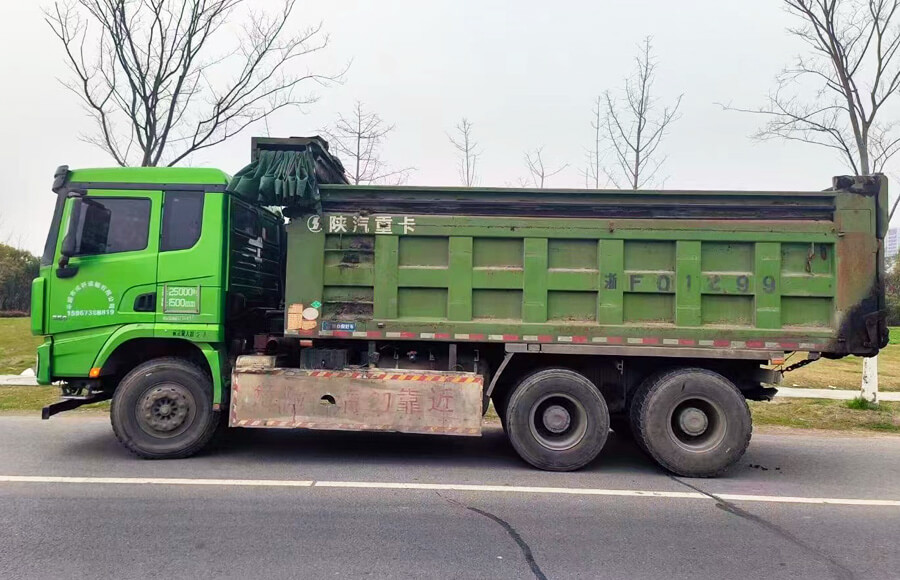

Shacman X3000 Dump Tractor 6x4 350HP SX32505B4042A

Condition Used (Produced in 2020)
Brand SHACMAN
Drive type 6x4
Fuel type
Horsepower 350 HP
Emission standard Euro 5
Engine brand Weichai
Engine capacity 9.726 L
Transmission Manual

Shacman X3000 Dump Tractor 6x4 350HP SX32505B4042A Specifications & Features

Basic Info

Model SX32505B4042A Brand Shacman
Drive model 6x4 Wheel base 3975+1400mm
Engine model Weichai WP10.350E53 Gearbox FAST 12JSD160T
Rear axle ratio 5.262 Dimension (LxWxH) 8750x2550x3450mm
Wheel track 2011mm+1860/1860mm Tare weight 12500kg
Payload 25000kg Condition Used

Product Parameters

Engines Engine model Weichai WP10.350E53
No. of cylinders​ 6
Fuel type Diesel
Engine capacity 9.726L
Emission standard Euro 5
Max horsepower 350hp
Max power 257Kw
Maximum torque rpm 1200-1600rpm
Gearboxes Gearbox model Fast 12JSD160T
Gear shifting method Manual
Forward gears 12
Reverse gears 2
Chassis Frame size 850×300(8+7)mm
Front axle allowable load 7000kg
Rear axle allowable load 2x18000kg
Rear axle ratio 5.262
Number of leaf springs 10/12
Cargo box Cargo box Dimension (LxWxH) 5800x2350x1500mm
Thickness of the bottom/side panel 10/8mm
Tire Tire numbers 10
Tire size 12.00R20
Brakes ABS (Anti-lock Braking System)
